Insert

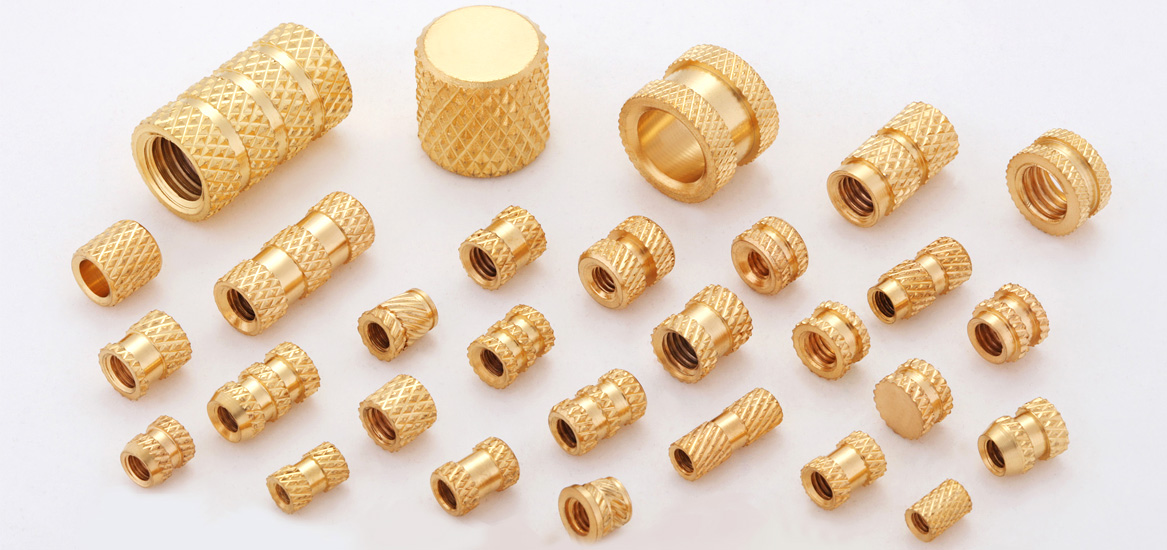

Golden Fox Overseas is the leading manufacturer of Brass threaded inserts for plastics industries, communication equipments, automotive industries, electrical & Wiring device cases etc. We offer a full line of brass inserts for all methods of installation, including: ultrasonic, heat, thermal, press-in and mold-in. Although we produce various brass inserts as per custom design & specification, we have standard series of Threaded Inserts such as Straight Hole, Blind (Closed bottom), Collar Inserts, Ultrasonic, Press in, Tri Slotted Inserts etc.





Process

  • Turning
  • Forging
  • Milling
  • Stamping
  • Broaching




Material

  • Free Cutting Brass IS 319 Type I or BS 249 Type I.
  • CuZn38Pb2 / CuZn38Pb3 / CuZn39Pb2 / CuZn39Pb3 / CuZn40Pb2 / CuZN43Pb2
  • Any Special Non Ferrous Material Grade.
  • Brass as per RoHS Directive
  • Any Other Equivalent Grades




Size

  • Circumference Dia 1MM to 800MM with length of any size.
  • We develop customize Inserts as per technical drawing or other relevant data.




Length

  • Begins from M2 or equivalent threads and up to any size as per custom design




Finish

  • Natural
  • Nickel
  • Tin
  • Chrome
  • Silver




Tolerance

  • Upto 0.05MM







Thread

  • Metric ISO Thread [M]
  • Metric ISO Fine Thread [MF]
  • Unified Coarse thread [UNC]
  • Unified Fine thread [UNF]
  • Unified Coarse thread for Screw thread inserts [EG UNC(STI)]
  • Unified Extra Fine thread [UNEF]
  • British Standard pipe thread [BSP] OR [BSPT] OR [G]
  • Whitworth Standard parallel internal pipe thread [RP]
  • British Standard Whitworth thread [BSW]
  • British Standard Fine thread [BSF]
  • British Association Standard thread [BA]
  • American standard straight pipeThread [NPSM]
  • American standard straight pipe thread [NPT]
  • Any as per customer's drawing
