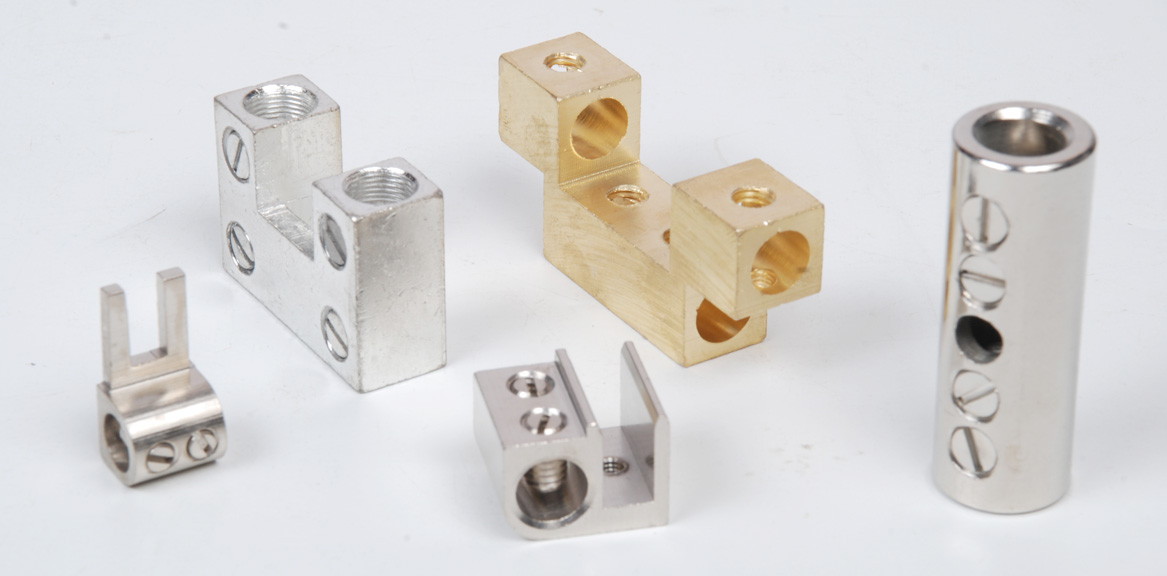

Brass switchgear components
Golden Fox Overseas is leading manufacturer of quality Brass Precision Components as per O.E. Drawings, samples. Any kind of brass switchgear components can be developed as per customer’s drawing and specification. We are a high-speed machining facility specializing in brass fittings. We use the latest technologies, including rotary transfer machines, multiple-spindle bar machines, CNC machines and a variety of automatic secondary and assembly.
Process
- Turning
- Forging
- Milling
- Stamping
- Broaching
Material
- Brass Free Cutting Grade I, Grade II, Grade III
- CuZn38Pb2 / CuZn38Pb3 / CuZn39Pb2 / CuZn39Pb3 / CuZn40Pb2 / CuZN43Pb2
- CW603N / CW606N / CW608N / CW612N / CW614N / CW617N / CW623N
- CZ120 / CZ121 / CZ122 / CZ131
- C37700 / C35300 / C36000
- Lead Free
- DZR Brass
- Copper C101/CW004A
- Any Other Equivalent Grades
Size
- Circumscribe Diameter 1.5MM to 200MM
Length
- Turning Length 400 MM
Finish
- Natural
- Nickel
- Zinc
- Tin
- Chrome
- Silver
Tolerance
- Upto 0.05MM
Thread
- Metric ISO Thread [M]
- Metric ISO Fine Thread [MF]
- Unified Coarse thread [UNC]
- Unified Fine thread [UNF]
- Unified Coarse thread for Screw thread inserts [EG UNC(STI)]
- Unified Extra Fine thread [UNEF]
- British Standard pipe thread [BSP] OR [BSPT] OR [G]
- Whitworth Standard parallel internal pipe thread [RP]
- British Standard Whitworth thread [BSW]
- British Standard Fine thread [BSF]
- British Association Standard thread [BA]
- American standard straight pipeThread [NPSM]
- American standard straight pipe thread [NPT]
